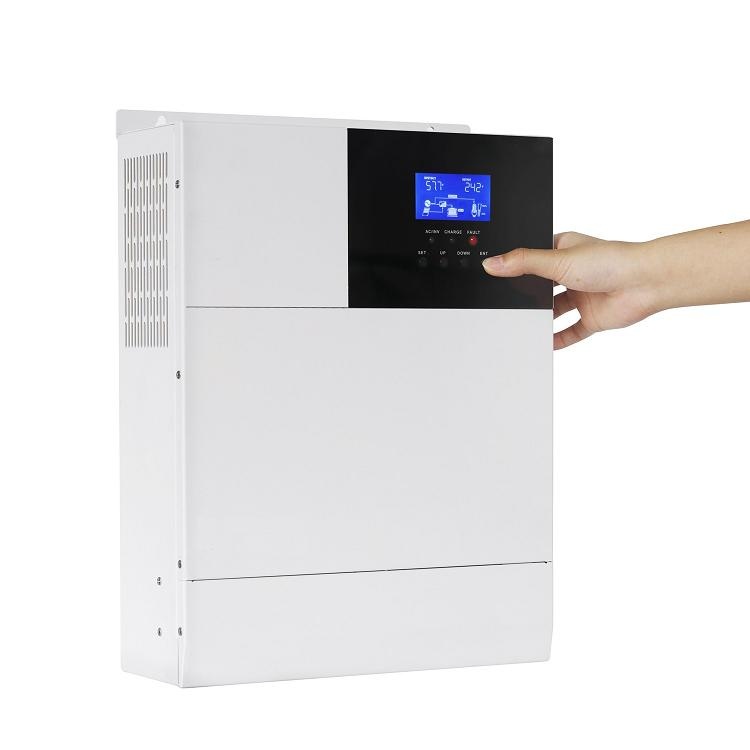

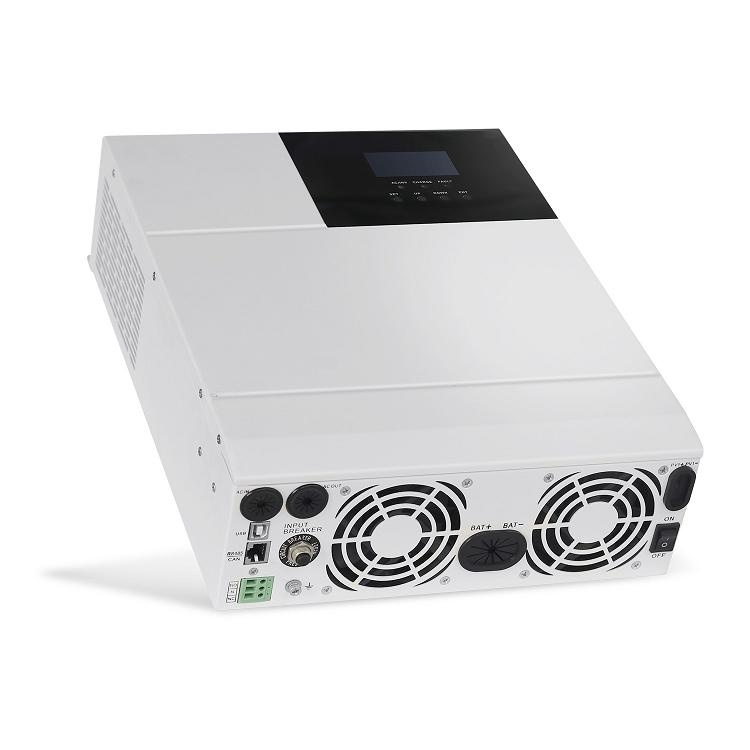

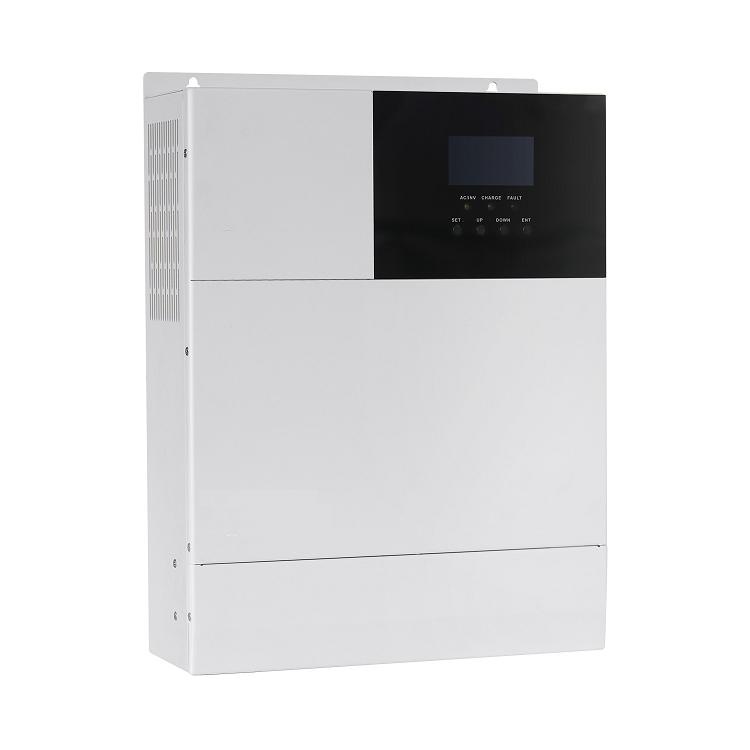

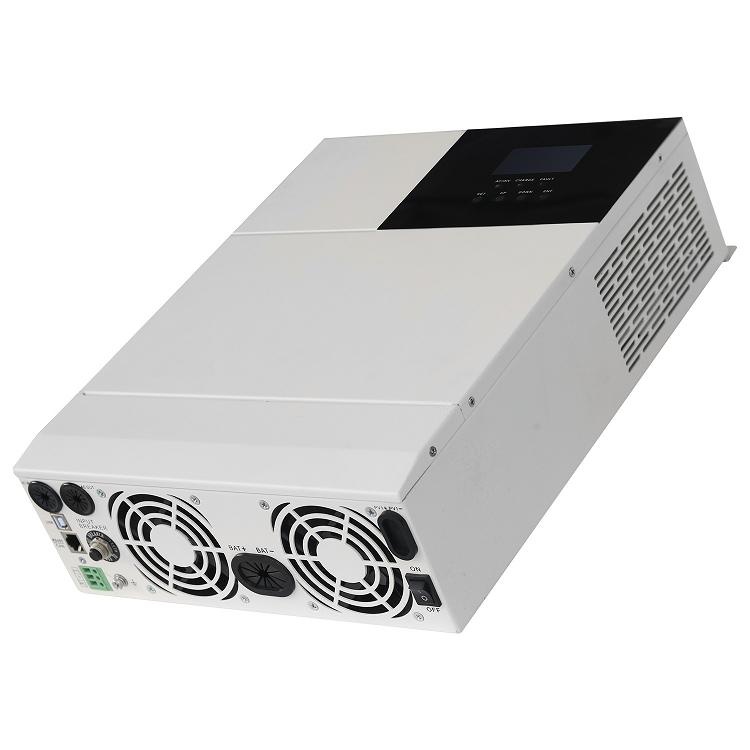

Performance characteristics:
1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5. With the charging requirement (voltage, current, mode) settings, and suitable for various types of energy storage batteries.
6. ON/OFF rocker switch for AC output control.
7. Power saving mode available to reduce no-load loss.
8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation design, allowing access of lead-acid battery and lithium battery.
10. 360 ° all-round protection with a number of protection functions. Such as overload, short circuit and over current.
11. Supply of a variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN, USB etc., and suitable for computer, mobile phones, Internet monitoring as well as remote operations.
12. Lithium battey can be activated by both mains and PV.
|
Models
|
HF2420S60-100
|
HF2430S60-100
|
|
AC mode
|
|
|
Rated input voltage
|
220/230Vac
|
|
Input voltage range
|
(170Vac~280Vac) ±2%；(90Vac-280Vac)±2%
|
|
Frequency
|
50Hz/ 60Hz (Auto detection)
|
|
Frequency Range
|
47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
|
|
Overload/short circuit protection
|
Circuit breaker
|
|
Efficiency
|
>95%
|
|
Conversion time (bypass and inverter)
|
10ms (typical)
|
|
AC reverse protection
|
Available
|
|
Maximum bypass overload current
|
30A
|
|
Inverter mode
|
|
|
Output voltage waveform
|
Pure sine wave
|
|
Rated output power (VA)
|
2000
|
3000
|
|
Rated output power (W)
|
2000
|
3000
|
|
Power factor
|
1
|
|
Rated output voltage (Vac)
|
230Vac
|
|
Output voltage error
|
±5%
|
|
Output frequency range (Hz)
|
50Hz ± 0.3Hz/60Hz ± 0.3Hz
|
|
Efficiency
|
>92%
|
|
Overload protection
|
(102% < load<125%) ±10%: report error and turn off
the output after5 minutes;
(125% < load < 150%) ± 10%: report error and turn
off the output after 10 seconds;
Load >150% ±10%: report error and turn off the
output after 5 seconds;
|
|
Peak power
|
4000
|
6000
|
|
Loaded motor capability
|
1HP
|
2HP
|
|
Output short circuit protection
|
Circuit breaker
|
|
Bypass breaker specifications
|
30A
|
|
Rated battery input voltage
|
24V (Minimum starting voltage 22V)
|
|
Battery voltage range
|
(20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery settable on LCD screen)
|
|
Power saving mode
AC charging
|
Load ≤25W
|
|
Battery type
|
Lead acid or lithium battery
|
|
Maximum charge current
|
60A
|
80A
|
|
Charge current error
|
± 5Adc
|
|
Charge voltage range
|
18.0Vdc~33Vdc
|
|
Short circuit protection
|
Circuit breaker and blown fuse
|
|
Circuit breaker specifications
|
30A
|
|
Overcharge protection
|
Alarm and turn off charging after 1 minute
|
|
PV charging
|
|
|
Maximum PV open circuit voltage
|
100Vdc
|
|
PV operating voltage range
|
30-100Vdc
|
|
MPPT voltage range
|
30-95Vdc
|
|
Battery voltage range
|
18-33Vdc
|
|
Maximum output power
|
1400W
|
|
PV charging current range (can be set)
|
0-60A
|
|
Charging short circuit protection
|
Blown fuse
|
|
Wiring protection
Certified specifications
|
Reverse polarity protection
|
|
Certification
|
CE(IEC/EN62109-1,-2)、ROHS2.0
|
|
EMC certification level
|
EN61000
|
|
Operating temperature range
|
-15°C to 55°C
|
|
Storage temperature range
|
-25°C ~ 60°C
|
|
Humidity range
|
5% to 95% (Conformal coating protection)
|
|
Noise
|
≤60dB
|
|
Heat dissipation
|
Forced air cooling, variable speed of fan
|
|
Communication interface
|
USB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
|
|
Size (L*W*D)
|
378mm*280mm*103mm
|
|
Weight (kg)
|
6.2
|
